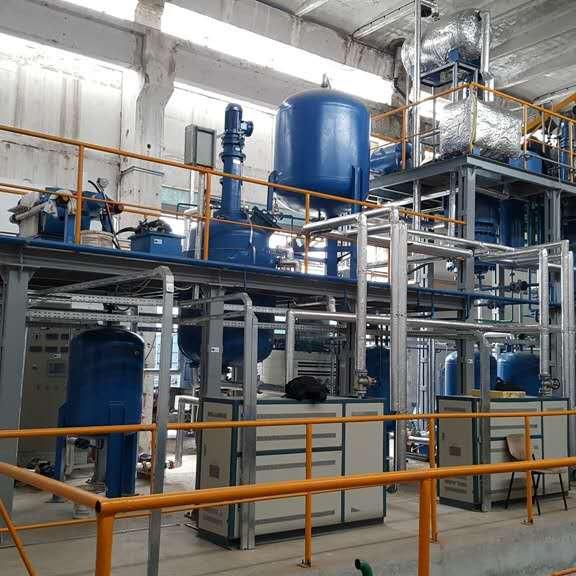

(Turnkey Plant) black used lube oil recycling refinery
Purify the used machinery oil, hydraulic oil, compressor oil, motor oil, mediate-load gear oil, cooler oil, steel rolling oil, quench oil, flash swift quench oil, etc. in mine, metallurgical industry, machinery, chemical industry, rubber industry, instrument, traffic, petroleum drilling and exploring, construction ceramics, precision pressure casting, etc.
Techincal Indications:
Moisture content | 10PPM |
Mechanical impurities | ‹ 0.022% |
Pollution Degree | ‹ NAS9 |
Be compare with new oil, viscosity change rate | ‹+5% |
Filter accuracy | 3 micron |
Efficiency | 95% |
Installed power | 17KW |
Regenerated oil quantity | 800-1000KG/H. |
Recovery rate
Base oil: 85%~87% (index similar to SN150~SN500)
Gasoline: 3%
Diesel:3%
Oil residue: 6%~9%
Systems of equipment
1. Pre-treatment system: waste oil will be pumped into the distillation kettle after pretreated.
2. Distillation system: through burning coal, gas or fuel oil to make the oil in the kettle up to the working temperature. This system equipped with stirring system and insulation system.
3. Cooling system: the gaseous hydrocarbon will be cooled into liquid base oil. Gasoline and diesel oil.
4. Oil storage system: the base oil, gasoline and diesel get from cooling system storage here, Then pump into the storage tank.
5. Vacuum system: meet the technology requirement.
6. Filtration system: rapidly filter out mechanical impurities in the base oil, gasoline and diesel, get the high quality base oil, gasoline and diesel.
Comparasion picture of the waste oil and the regenerated oil:
The black one is the used engine oil,and the red one is regenerated by our machine,and the light yellow is refined after the used engine oil wasregenerated.
Complete Plant Includes:
1. Vacuum system
2. Thermal oil heating system
3. Electric control cabinet
4. Technical personnel training
5. Technical training and so on.
Through survey and investigation, the equipment our company developed is originated in our country.
We have received national invention patents.
The number of invention patent is 200810141346.8
Utility model patent No.:ZL20082014967303
This equipment has been recommended as the first energy-saving products by Luoyang Municipal Government and good for popularization..
